I am using a module that has the thickness 1.9 inches.I don't know which midclamps and end clamps. Is there a table for that? Comments Waco, I'd suggest you look at this table: https://www.greentechrenewables.com/prosolar-clamps You need 2.75" mid clamp and 1.9" end clamp. The reason you'd use a larger mid clamp is the bolt that goes through the clamp+channel nut. Have a look at the attached drawings. File Attachment(s) View prosolar_mid clamp detail36.47 KB View prosolar_mid clamp detail225.04 KB Reply Add new comment Submitted 13 years 7 months ago Asked by Damian Waco Support topics Products Racking and mounting ShareTwitterFacebookLinked inMail Add new comment
Waco, I'd suggest you look at this table: https://www.greentechrenewables.com/prosolar-clamps You need 2.75" mid clamp and 1.9" end clamp. The reason you'd use a larger mid clamp is the bolt that goes through the clamp+channel nut. Have a look at the attached drawings. File Attachment(s) View prosolar_mid clamp detail36.47 KB View prosolar_mid clamp detail225.04 KB Reply
Comments
Waco, I'd suggest you look at this table: https://www.greentechrenewables.com/prosolar-clamps
You need 2.75" mid clamp and 1.9" end clamp.

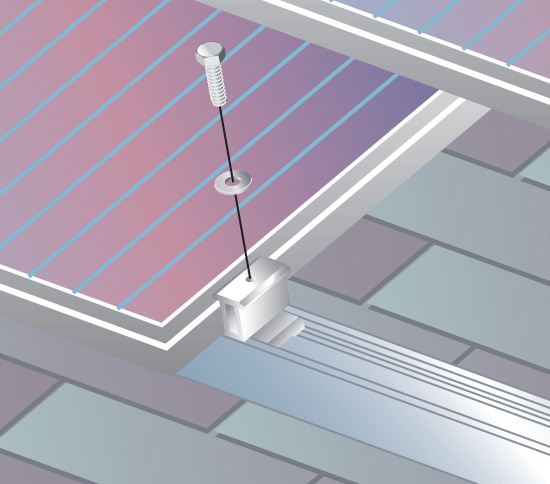

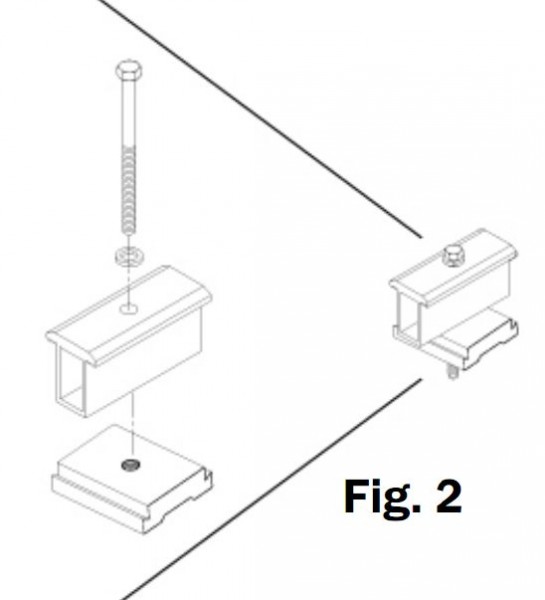

The reason you'd use a larger mid clamp is the bolt that goes through the clamp+channel nut. Have a look at the attached drawings.
