We would like a diagram on hooking our Morningstar SunGuard to our 100 Watt solar panel. Comments rosecoy49,The installation manual and the data sheet are great resources for what you are looking. The below image is from page 3.You don't need an electrical drawing and I think this would suffice. Is there any specific information you are looking for? File Attachment(s) View sunguard.JPG27.96 KB Reply Seems very simple. How do you connect the load? Reply Add new comment Submitted 13 years 7 months ago Asked by Missing Missing Topics Products Charge Controller ShareTwitterFacebookLinked inMail Add new comment
rosecoy49,The installation manual and the data sheet are great resources for what you are looking. The below image is from page 3.You don't need an electrical drawing and I think this would suffice. Is there any specific information you are looking for? File Attachment(s) View sunguard.JPG27.96 KB Reply
Comments
rosecoy49,

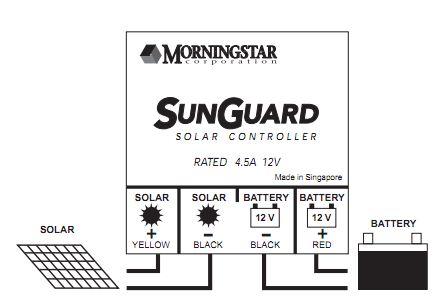

The installation manual and the data sheet are great resources for what you are looking. The below image is from page 3.
You don't need an electrical drawing and I think this would suffice. Is there any specific information you are looking for?
Seems very simple. How do you connect the load?
