Unirac SolarMount Adjustable Tilt Leg 18"-30" w/Hardware, 307115M

Catalog #

307115M

Mfr. Part #

307115M

Manufacturer

Unirac

Description

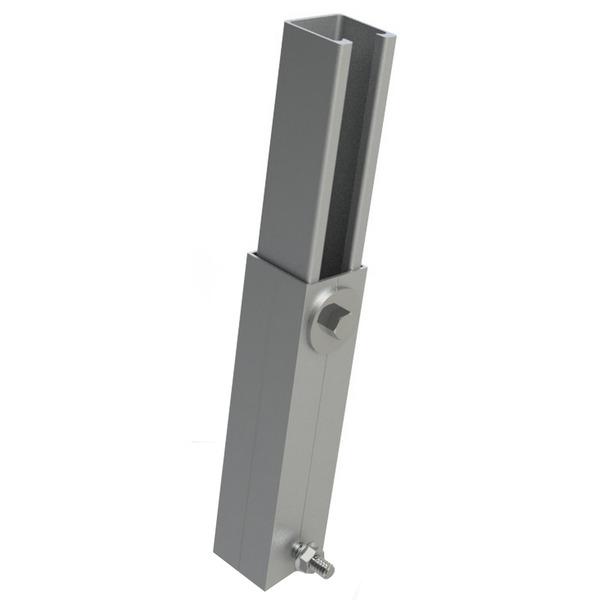

Unirac Solarmount 30andquot; Adjustable Tilt Leg, 307115M

Minimize the vertical height of your array—to hide an array behind a parapet, for example. You can also optimize tilt angle on a pitched roof to maximize system performance. Tilt angle depends on leg length and the make and model of your PV modules. Use standard rail with all tilt legs.

In low profile arrays, tilt angles depend on leg length and module length.

Each leg contains a square tube, a strut insert, and fasteners.

Note that usable lengths are 2andquot; less than stated because holes are drilled 1andquot; from ends.

Low profile solutions require the addition of two (2) L-foot for each leg.

48andquot; to 106andquot; (Rail length per row) -2 (Tilt legs required per row)

120andquot; to 180andquot; (Rail length per row) -3 (Tilt legs required per row)

192andquot; to 216andquot; (Rail length per row) -4 (Tilt legs required per row)

226andquot; to 288andquot; (Rail length per row) -5 (Tilt legs required per row)

300andquot; to 336andquot; (Rail length per row) -6 (Tilt legs required per row)

348andquot; to 408andquot; (Rail length per row) -7 (Tilt legs required per row)

420andquot; to 432andquot; (Rail length per row) -8 (Tilt legs required per row)

Technical Specifications

Leg Length

18-30 (Adj) In.

General Information

Type

Tilt Leg

Material

Aluminum

Application

Pole Mount - Top

Datasheets

Datasheet

Installation Manuals

Installation Manual
