Description

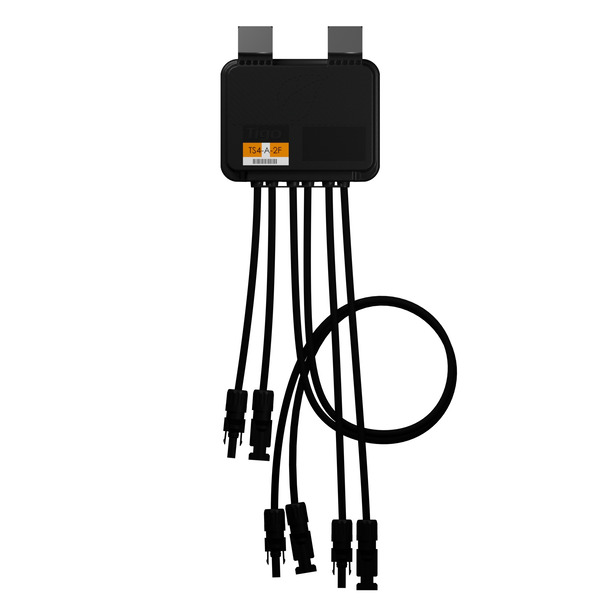

Tigo Energy TS4-A-2F Dual Module Add-On RSD Unit, Fire Safety, 484-00252-22
Note: RSS Transmitter required for rapid shutdown with TS4-A-2F. Some inverters may have built-in RSS Transmitter.
The TS4-A-2F (Fire Safety) is the advanced add-on/retrofit optimization solution that brings smart module functionality to standard PV modules for higher reliability.
The TS4-A-2F with UHD-Core technology and expanded specifications supports two PV modules connected in series with a combined power of up to 1000 W.
Features:
• Enhanced safety for NEC 690.12 rapid shutdown compliance
• PV array enters rapid shutdown in event of AC grid loss
• Sealed housing, no longer a removable cover (will cut down on installation error and installer induced failures)
• Smaller form/fit - fits flush with most module frames
• Simplified retrofit attachment mechanism - removal of frame clips allows for hardware installation for alternate mounting locations
• Power Rating increased to 500 W per channel, 1000 W total
• Wider voltage window
• Standardized on 1.2 M cable length (for landscape orientations)
