Catalog #
30K-3P-208V
Mfr. Part #
30K-3P-208V
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

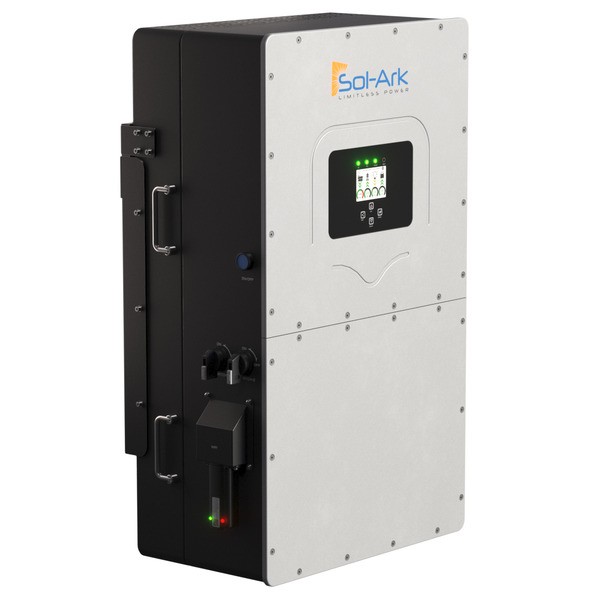

The Sol-Ark 30K-3P-208V commercial hybrid inverter is a powerful and versatile commercial energy storage solution specifically designed for light commercial and industrial businesses. It helps commercial building owners reduce high demand charges by optimizing solar energy usage, shaving peak demand charges, and participating in grid services programs for additional revenue. Includes a standard 10-year warranty.

AC and DC Coupling Capability: Supports both AC and DC coupling, enabling seamless integration with existing solar PV systems and new arrays that simplify commercial installations.

Modular and Scalable Energy: Modular and flexible design allowing for easy expansion from 30kW to 300kW to accommodate growing energy needs; up to 10 inverters in parallel + 16 batteries per inverter.

Seamless Backup Power: Provides reliable blazing fast 5ms transfer and backup power during grid outages, ensuring business continuity; 200A grid pass-through for simple grid-tied and backup applications.

Easy Installation without the Transformer for Light Commercial Businesses: Native 120/208V 3 phase output simplifies installation for most light commercial buildings.

L3 Series Lithium BESS: Perfectly pairs with the Sol-Ark high voltage battery energy storage system and is HV battery agnostic.

Technical Specifications

Continuous AC Power Output
30000 W
Max Operating Voltage
500 V
Min Operating Voltage
150 V
AC Voltages
120/208 V
AC Frequencies
60 Hz
Phase
3 Phase
Maximum DC Input Voltage
500 V
Maximum DC Input Current
200 A
Peak Efficiency
97.5 %
CEC Efficiency
96.5 %
Number of MPPT's
4
Max MPPT Voltage
500 V
Min MPPT Voltage
170 V
Enclosure Ratings
IP65 / NEMA 3R
Mounting Type
Wall

General Information

Type
Hybrid
