Description
SnapNrack 242-05000 Standard Base Seam Clamp Assembly
The SnapNrack Series 500 Metal Roof Seam Clamp is a cost-optimized PV Mounting System for both residential and commercial metal roof mount installations. The system was designed to allow the attachment of PV modules or PV mounting rails directly to a commercial grade standing seam metal roof without penetrating the metal or collapsing the ridge in the metal roof material. The design is simple and low cost, but very effective.
The clamp is made from high tensile strength aluminum and has two models that will work with multiple metal roof designs including single and double rolled seams or similar designs. This allows a completely engineered system that is simple, robust, and efficient with the lowest possible total installed cost.
Clamps use 5/16 In. - 18 bolt for clamping and mounting
10 Year Material and Workmanship Warranty

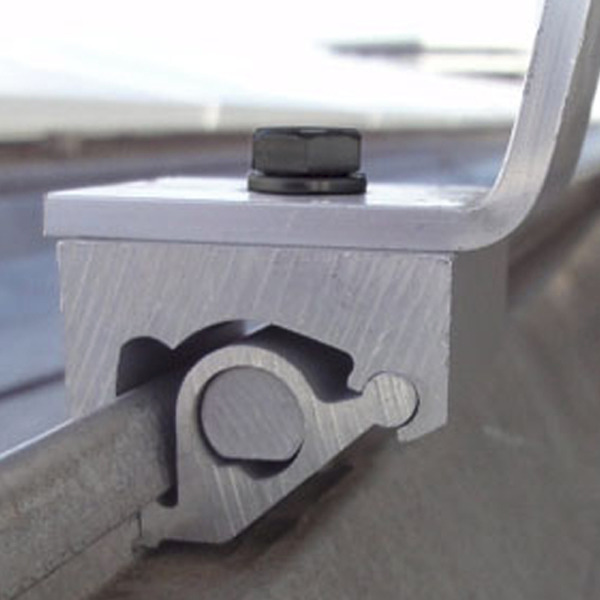

Standing Seam Clamp
The SnapNrack Standing Seam Clamp is manufactured from high tensile strength aluminum and engineered to work with multiple standing seam metal roof designs, including the Butler MR-24.
The Standing Seam Clamp can be used to attach everything from PV modules to snow guards - anything you can put on a roof!
