Catalog #
03-50-1000-2-41
Mfr. Part #
03-50-1000-2-41
Manufacturer
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

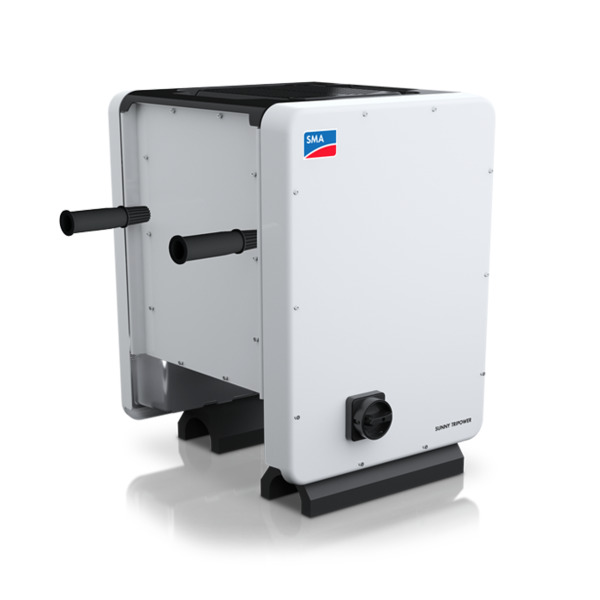

SMA Sunny Tripower CORE1 50kW 480 / 277VAC TL Inverter, STP50-US-41The Sunny Tripower CORE1 is the worldfirst free-standing PV inverter for commercial rooftops, carports, ground mount, and repowering legacy solar projects. Now with expanded features and new power classes, the CORE1 is the most versatile, cost-effective commercial solution available. From distribution to construction to operation, the Sunny Tripower CORE1 enables logistical, material, labor and service cost reductions. Integrated SunSpec PLC for rapid shutdown and enhanced DC AFCI arc-fault protection ensure compliance with the latest safety codes and standards. With Sunny Tripower CORE1 and SMAs ennexOS cross-sector energy management platform, system integrators can deliver comprehensive commercial energy solutions for increased ROI.

Technical Specifications

Continuous AC Power Output
50000 W
Max Operating Voltage
1000 VDC
Min Operating Voltage
150 VDC
AC Voltages
277/480 VAC
Topology
Transformerless
Phase
3 Phase
Maximum DC Input Voltage
1000 VDC
Maximum DC Input Current
120 A
Peak Efficiency
98 %
Enclosure Ratings
NEMA 4X
Mounting Type
Rack

General Information

Type
String Inverter

Datasheets

Support Articles
