Catalog #
3-150-1500-2-20
Mfr. Part #
3-150-1500-2-20
Manufacturer
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Description

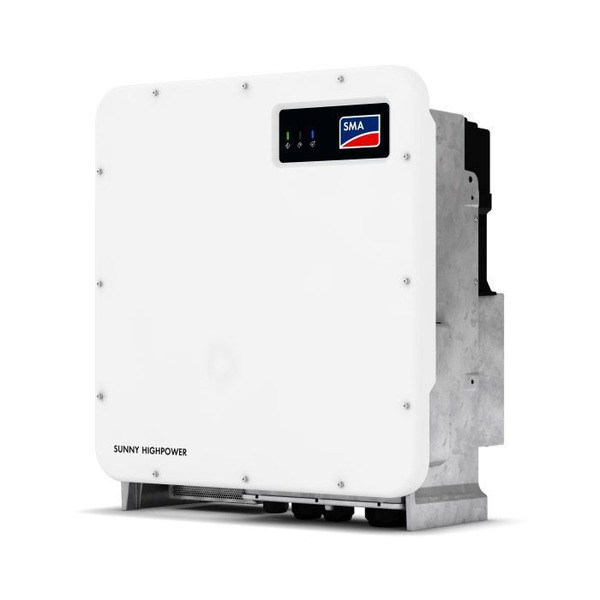

SMA Sunny Highpower PEAK3 150kW 480VAC TL Inverter, SHP150-US-20The new Sunny Highpower PEAK3 is SMA's latest addition to a comprehensive portfolio of utility solutions. This 1,500 VDC inverter offers high power density in a modular architecture that achieves a cost-optimized solution for utility-scale PV integrators. With fast, simple installation and commissioning, the Sunny Highpower PEAK3 is accelerating the path to energization. SMA has also brought its field-proven Smart Connected technology to the PEAK3, which simplifies OM and contributes to lower lifetime service costs. The PEAK3 utility system solution is powered by the ennexOS cross sector energy management platform, 2018 winner of the Intersolar smarter E AWARD.

Technical Specifications

Continuous AC Power Output
150000 W
Max Operating Voltage
1425 VDC
Min Operating Voltage
855 VDC
AC Voltages
600 VAC
AC Frequencies
60 Hz
Topology
Transformerless
Maximum DC Input Voltage
1500 VDC
Maximum DC Input Current
325 A
Number of MPPT's
1
Enclosure Ratings
NEMA 4X

General Information

Type
String Inverter

Datasheets
