Catalog #

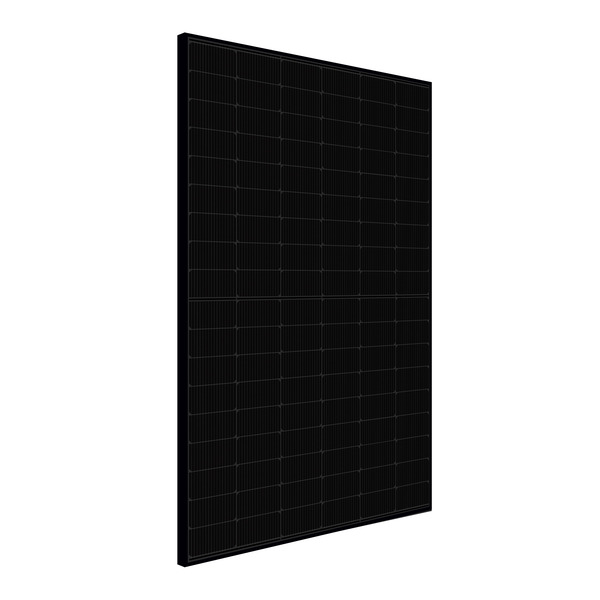

SIL 430 QD
Mfr. Part #
SIL 430 QD
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
321
Watts STC
430 W
Cells
108
Technology
N-Type TOPCon
Open Circuit Voltage (Voc)
38.91
Short Circuit Current (Isc)
13.87
Max Power Voltage (Vmpp)
33.25
Max Power Current (Impp)
12.93
Max Current
25 A
Efficiency
22.1
Max System Voltage
1000 V
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
High durability, superior hydrolysis and UV resistance, multi-layer dielectric film, fluorine-free PV backsheet
Connector
Staubli MC4
Output Cables
53.1 in, φ 0.22 in (12 AWG)
Series Fuse Rating (Amps)
25
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2

General Information

Dimensions
1721 L x 1133 W x 35 H mm
Weight
46.3 Lbs.
Series
Silfab Prime NTC
Approvals
UL 61215
UL 61730
CSA C22.2#61730
IEC 61215
IEC 61730
IEC 61701 (Salt Mist Corrosion)
IEC 62716 (Ammonia Corrosion)
CEC Listed
UL Fire Rating: Type 2
