Catalog #

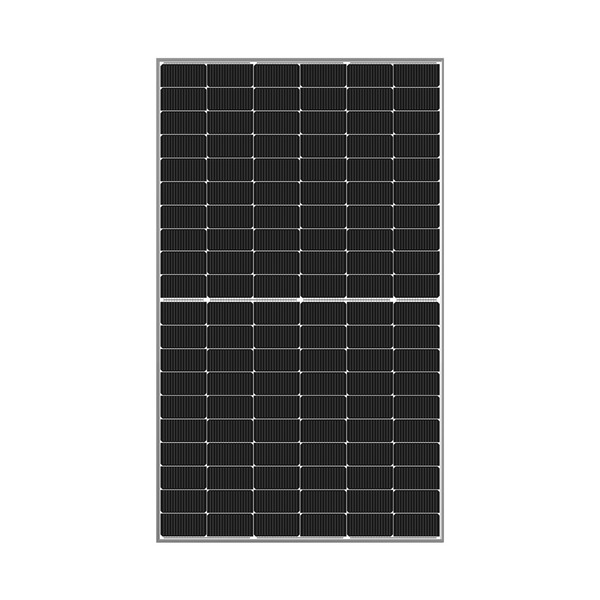

SEG-485-BTB-BG
Mfr. Part #
SEG-485-BTB-BG
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
365
Watts STC
485 W
Cells
120
Technology
N-Type
Open Circuit Voltage (Voc)
43.40
Short Circuit Current (Isc)
14.08
Max Power Voltage (Vmpp)
36.20
Max Power Current (Impp)
13.40
Max Current
30 A
Efficiency
22.40
Max System Voltage
1500 V
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Silver
Backsheet Material
2.0 mm Semi-tempered glass
Connector
PV-CO02-xy or MC4
Output Cables
12 AWG PV Wire(UL) Portrait: 400 mm(+) / 200 mm(-) Landscape: 1200 mm(+) / 1200 mm(-)
Series Fuse Rating (Amps)
30
Temp Coefficient (Pmpp)
-0.30
Temp Coefficient (Voc)
-0.25
Fire Classification (Type)
29

General Information

Dimensions
1909 L x 1134 W x 30 H mm
Weight
27.3 Kg
Series
Yukon N
Approvals
IEC61215:2016; IEC 61730:2016; UL61215; UL61730
IEC62804
IEC61701
IEC62716
IEC60068
IEC61215
Fire Type (UL61730): Type 29
ISO14001:2015; ISO9001:2015; ISO45001:2018
