Catalog #

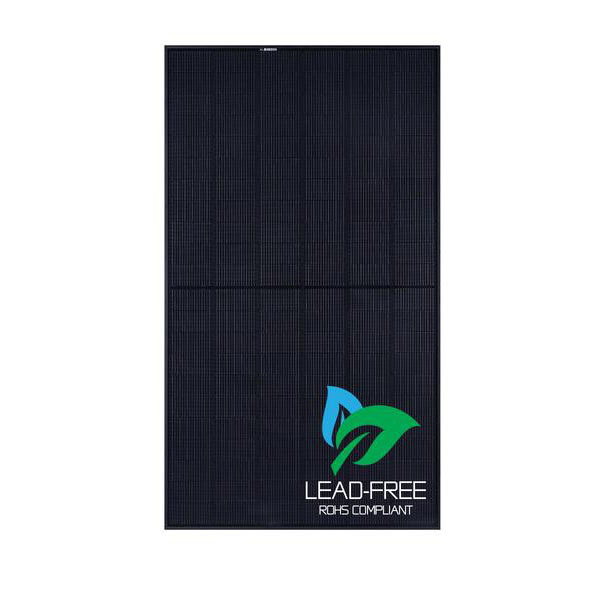

REC430AA PURE 2
Mfr. Part #
REC430AA PURE 2
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
327
Watts STC
430 W
Cells
132
Technology
HJT
Open Circuit Voltage (Voc)
49.3
Short Circuit Current (Isc)
10.81
Max Power Voltage (Vmpp)
42.8
Max Power Current (Impp)
10.05
Max Current
25 A
Efficiency
22.2
Frame Material
Anodized Aluminum
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Highly resistant polymer
Connector
Staubli MC4 PV-KBT4/KST4 (12 AWG)
Output Cables
12 AWG solar cable, 49.2 + 49.2 in
Temp Coefficient (Pmpp)
-0.24
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2
General Information
Dimensions
1864 L x 1039 W x 30 H mm
Weight
47.6 Lbs.
Series
Alpha Pure 2
Approvals
IEC 61215:2016
IEC 61730:2016
UL 61730
IEC 62804
IEC 61701
IEC 62716
UL 61730
IEC 62782
IEC 61215-2:2016
IEC 62321
ISO 14001
ISO 9001
IEC 45001
IEC 62941
