Catalog #

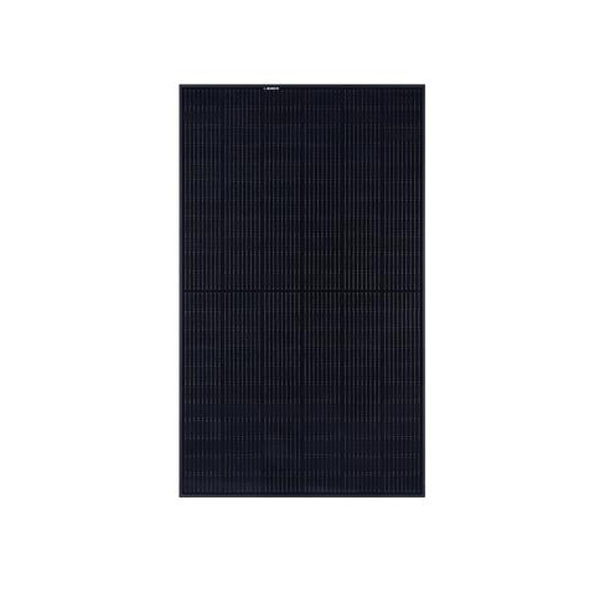

REC390NP3 BLACK
Mfr. Part #
REC390NP3 BLACK
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
295
Watts STC
390 W
Cells
132
Technology
Mono C-Si N-Type
Open Circuit Voltage (Voc)
44.8
Short Circuit Current (Isc)
11.31
Max Power Voltage (Vmpp)
36.8
Max Power Current (Impp)
10.6
Max Current
25 A
Efficiency
19.5
Max System Voltage
1000 V
Frame Material
Anodized Aluminum
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Highly resistant polymer
Connector
Staubli MC4 PV-KBT4/KST4 (12 AWG)
Output Cables
12 AWG PV wire, 47.2 + 47.2 in
Series Fuse Rating (Amps)
25
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 2

General Information

Dimensions
1900 L x 1039 W x 30 H mm
Weight
48 Lbs.
Series
N-Peak 3 Black
Approvals
IEC 61215:2016
IEC 61730:2016
UL 61730
IEC 62804
IEC 61701
IEC 62716
UL 61730
UL 790
IEC 62782
IEC 61215-2:2016
