Catalog #

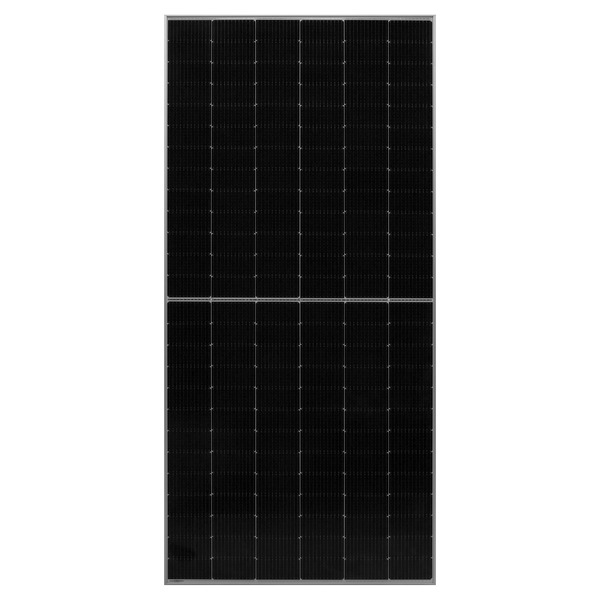

Q.PEAK DUO XL-G11S.3/BFG 585
Mfr. Part #
Q.PEAK DUO XL-G11S.3/BFG 585
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
440.5
Watts STC
585 W
Cells
156
Technology
Q.ANTUM DUO
Open Circuit Voltage (Voc)
53.76
Short Circuit Current (Isc)
15.01
Max Power Voltage (Vmpp)
44.74
Max Power Current (Impp)
14.3
Max Current
25 A
Efficiency
21
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
0.08 In (2.0 mm) Semi-Tempered Glass
Connector
Staubli MC4; Staubli MC4-Evo2; - IP68
Output Cables
4 mm2 Solar cable; (+) ≥ 29.5 in (750 mm), (-) ≥ 13.8 in (350 mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 29
General Information
Dimensions
2462 L x 1134 W x 35 H mm
Weight
76.9 Lbs.
Series
Q.Peak Duo XL-G11S
Approvals
UL 61730
CE-compliant
IEC 61215:2016
IEC 61730:2016
