Catalog #

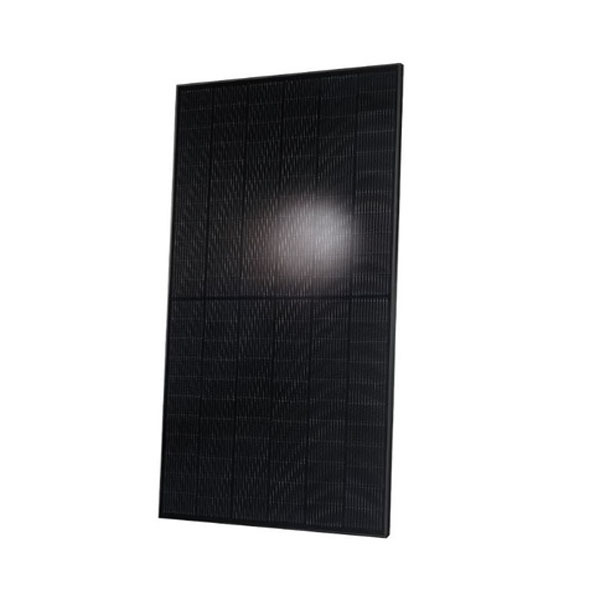

Q.PEAK DUO BLK ML-G10+/T 400
Mfr. Part #
Q.PEAK DUO BLK ML-G10+/T 400
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
300.1
Watts STC
400 W
Cells
132
Technology
Q.ANTUM DUO Z
Open Circuit Voltage (Voc)
45.72
Short Circuit Current (Isc)
12.11
Max Power Voltage (Vmpp)
38.09
Max Power Current (Impp)
11.49
Max Current
20 A
Efficiency
20.4
Frame Material
Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Transparent Composite Film With Black Grid
Connector
Staubli MC4; IP68
Output Cables
4 mm2 Solar cable; (+) ≥ 72.04 in (1830 mm), (-) ≥ 72.04 in (1830 mm)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.27
Fire Classification (Type)
Type 2
General Information
Dimensions
1879 L x 1045 W x 32 H mm
Weight
48.5 Lbs.
Series
Q.Peak Duo BLK ML-G10+
Approvals
UL 61730
CE-compliant
Quality Controlled PV - TUV Rheinland
IEC 61215:2016
IEC 61730:2016
