Catalog #
Q.PEAK DUO BLK ML-G9+ 375
Mfr. Part #
Q.PEAK DUO BLK ML-G9+ 375
Manufacturer
Category
Description

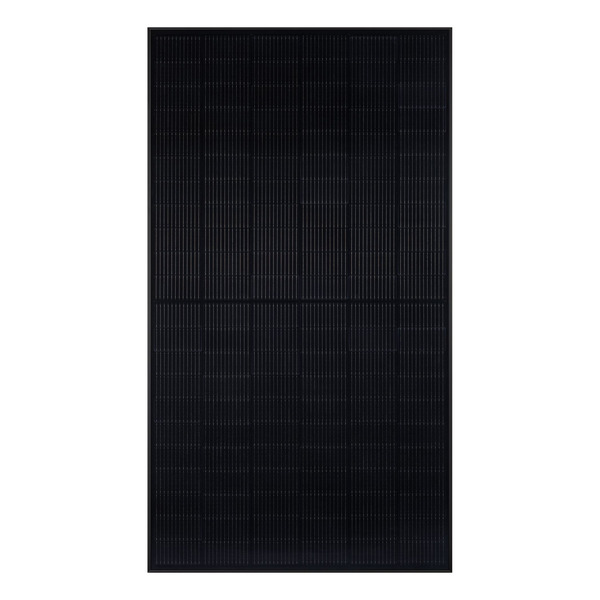

Q CELLS Q.PEAK DUO BLK ML-G9+ 375W Mono BLK/BLK 1000V Solar Panel
The Q.PEAK DUO BLK ML-G9+ features cells powered by Q CELLS’ zero-gap Q.ANTUM DUO Z Technology, offering higher module power density and improved all-black aesthetics. By eliminating the gaps between cells, module efficiency is increased in relative terms by 4%, delivering an overall efficiency of up to 20.6%. The number of cells contained within the module are increased from 120 half-cells to 132 half-cells. The module is also backed by a 25-year product and performance warranty that guarantees at least 86% of the initial power after 25 years.
Technical Specifications
Watts PTC
375
Watts STC
375 W
Cells
132
Technology
Mono
Short Circuit Current (Isc)
10.47
Max Power Voltage (Vmpp)
37.57
Max Power Current (Impp)
9.98
Efficiency
19.8
Frame Material
Black Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
Black
Connector
MC4
Output Cables
PV Wire
Temp Coefficient (Pmpp)
-0.35
Fire Classification (Type)
Type 2
