Catalog #
Q.PEAK DUO-G5 330
Mfr. Part #
Q.PEAK DUO-G5 330
Manufacturer
Category
Description
Q.PEAK DUO-G5MONOCRYSTALLINE Q.ANTUM DUO TECHNOLOGY

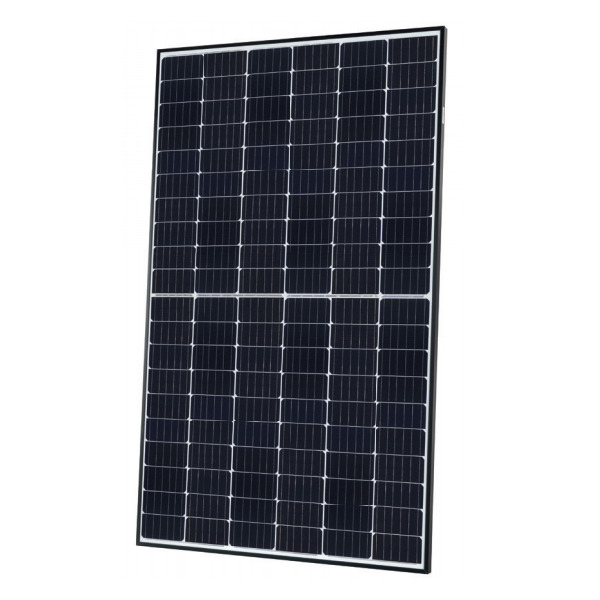

The new Q.PEAK DUO-G5 is a monocrystalline solar module with power classes up to 330 Wp and an efficiency of 19.9 %. Q.PEAK DUO-G5 solar modules offer higher yields over smaller surface areas. This is made possible by the new generation of Q.ANTUM's world-record-holding cell concept which has now been combined with state-of-the-art circuitry half cells and a six-busbar design. The front surface of the Q.PEAK DUO BLK-G5 is completely black and enhances the visual appearance of even the most exclusive residential system.
The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G5 this is not the case, thanks to Anti LID Technology.
The new Q.PEAK DUO-G5 is a monocrystalline solar module with power classes up to 330 Wp and an efficiency of 19.9 %. Q.PEAK DUO-G5 solar modules offer higher yields over smaller surface areas. This is made possible by the new generation of Q.ANTUM's world-record-holding cell concept which has now been combined with state-of-the-art circuitry half cells and a six-busbar design. The front surface of the Q.PEAK DUO BLK-G5 is completely black and enhances the visual appearance of even the most exclusive residential system.
The Q CELLS Anti LID Technology eliminates light induced degradation (LID), which can greatly reduce system performance, almost completely. Other conventional monocrystalline solar cells will lose much of their initial performance, once exposed to sunlight. With Q.PEAK DUO-G5 this is not the case, thanks to Anti LID Technology.
Technical Specifications
Watts STC
330 W
Cells
120
Technology
Mono
Open Circuit Voltage (Voc)
40.66
Short Circuit Current (Isc)
10.2
Max Power Voltage (Vmpp)
33.98
Max Power Current (Impp)
9.71
Max Current
9.71 A
Efficiency
19.6
Frame Material
Black Anodized Aluminum
Frame Thickness (mm)
32
Frame Color
Black
Backsheet Material
White
Connector
MC4
Output Cables
PV Wire
Temp Coefficient (Pmpp)
-0.37
Temp Coefficient (Voc)
-0.28
General Information
Dimensions
66.3 L x 39.4 W x 1.26 H In.
Weight
18.7 kg
