Description

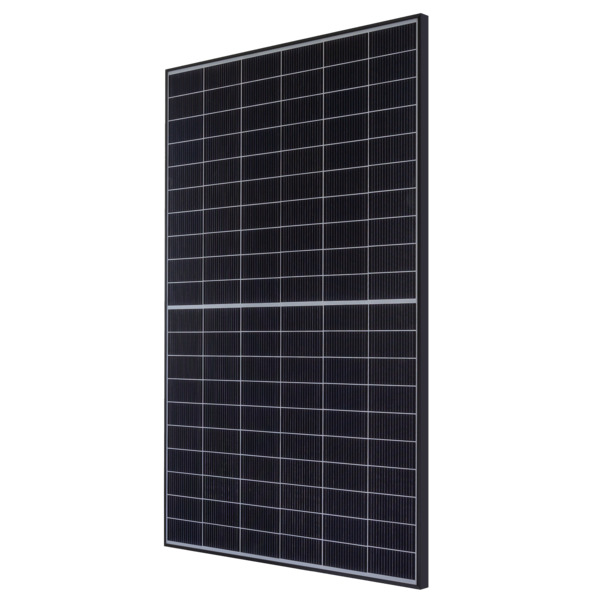

Panasonic 370W EverVolt 120 Half-Cell WHT/BLK Solar Panel, EVPV370

Panasonic EverVolt Series solar modules produce more power over the long haul fueled by industry-leading conversion efficiency and low degradation rate. Superior module efficiency of 21.2% (370W) and 20.6% (360W) and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.

EverVolt Series panels are covered by a complete 25-year warranty from one of America’s most trusted brands.

Features:

  • Higher module efficiency allows maximum power production with less roof space
  • Industry-leading 0.26%/°C temperature coefficient produces higher output at high temperatures
  • AllGuard and TripleGuard 25-year warranty covers performance, product, parts and labor for lasting value
  • Half-cut cells with heterojunction technology maximizes sunlight conversion and energy yield
  • Durability backed by 40+ years of solar innovation, experience and rigorous testing

Technical Specifications

Watts PTC
351.8
Watts STC
370 W
Cells
120
Technology
Monocrystalline
Open Circuit Voltage (Voc)
44.1
Short Circuit Current (Isc)
10.55
Max Power Voltage (Vmpp)
37.4
Max Power Current (Impp)
9.9
Max Current
25 A
Efficiency
21.2
Max System Voltage
1000 V
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Plastic film (PET)
Connector
Staubli MC4 PV-KBT4/KST4 (4 mm²)
Output Cables
12AWG(4mm²)
Series Fuse Rating (Amps)
25
Temp Coefficient (Pmpp)
-0.26
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2

General Information

Dimensions
1721 L x 1016 W x 30 H mm
Weight
43 Lbs.
Series
EVERVOLT®
Approvals
UL 61730|IEC61215-2:2016 [Hailstone 35mm]|Fire Type 2 (UL 61730)|Salt Mist [IEC 61701]|PID [IEC 62804]
