Description

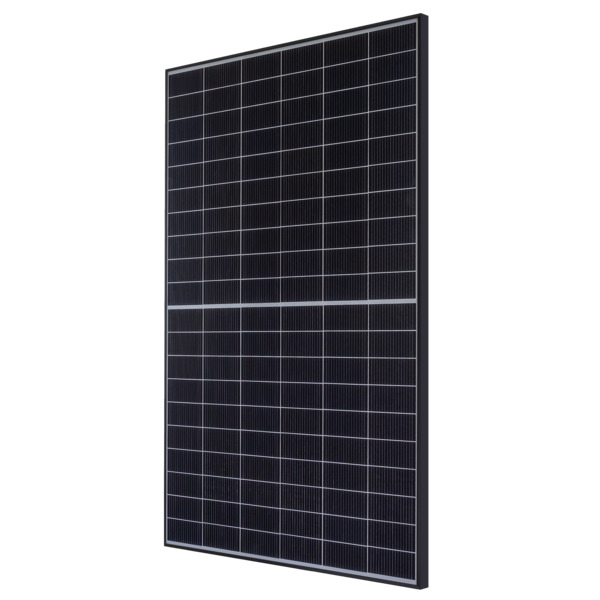

Panasonic 360W EverVolt 120 Half-Cell WHT/BLK Solar Panel, EVPV360
Panasonic EverVolt Series solar modules produce more power over the long haul fueled by industry-leading conversion efficiency and low degradation rate. Superior module efficiency of 21.2% (370W) and 20.6% (360W) and greater high-temperature performance deliver a high-output renewable energy source for residential solar systems.
EverVolt Series panels are covered by a complete 25-year warranty from one of America’s most trusted brands.
Features:
- Higher module efficiency allows maximum power production with less roof space
- Industry-leading 0.26%/°C temperature coefficient produces higher output at high temperatures
- AllGuard and TripleGuard 25-year warranty covers performance, product, parts and labor for lasting value
- Half-cut cells with heterojunction technology maximizes sunlight conversion and energy yield
- Durability backed by 40+ years of solar innovation, experience and rigorous testing
Technical Specifications
Watts PTC
342.1
Watts STC
360 W
Cells
120
Technology
Monocrystalline
Open Circuit Voltage (Voc)
43.9
Short Circuit Current (Isc)
10.49
Max Power Voltage (Vmpp)
36.7
Max Power Current (Impp)
9.82
Max Current
25 A
Efficiency
20.6
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
Plastic film (PET)
Connector
Staubli MC4 PV-KBT4/KST4 (4 mm²)
Output Cables
12AWG(4mm²)
Temp Coefficient (Pmpp)
-0.26
Temp Coefficient (Voc)
-0.24
Fire Classification (Type)
Type 2
General Information
Dimensions
1721 L x 1016 W x 30 H mm
Weight
43 Lbs.
Series
EVERVOLT®
Approvals
UL 61730|IEC61215-2:2016 [Hailstone 35mm]|Fire Type 2 (UL 61730)|Salt Mist [IEC 61701]|PID [IEC 62804]
