Catalog #
MNPV3
Mfr. Part #
MNPV3
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

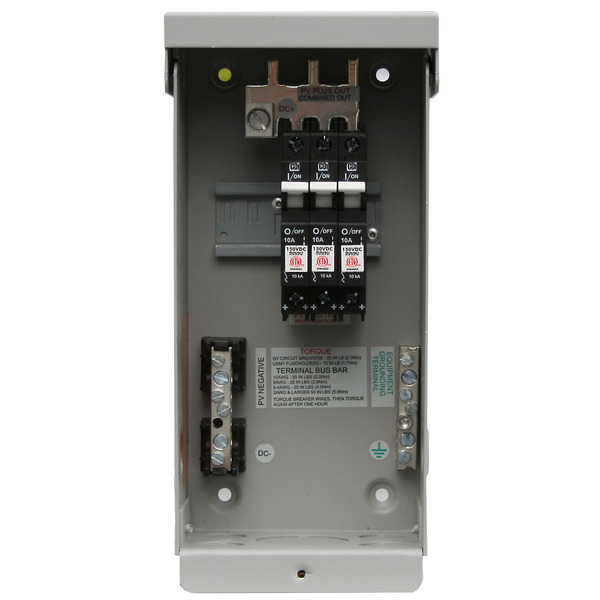

MidNite Solar MNPV3 Combiner 3 Input 20A 150/600V
Breakers/fuse holders sold separately.
Gray aluminum type 3R rainproof enclosure with deadfront, will accept three 150VDC (MNEPV) breakers or two 600 VDC fuse holders.
Includes a 60 amp plus bus bar, 6 position PV negative bus bar and a 6 position ground bus bar.
- Aluminum rainproof type 3R enclosure
- Internal plastic injection molded dead front covers
- Knock outs that accept waterproof strain reliefs, conduit or panel mount MC type connectors
- Knock outs for lightning arrestors
- Uses 150VDC andamp; 300VDC breakers or 600VDC fuses depending on model number
- TL listed to UL1741 for use in the US and Canada
- Made in the USA
Technical Specifications
Voltage
150|600 VDC
Max Current
60 A
Circuits (strings)
3 String|2 String
Phase
1 Phase
General Information
Type
String Inverter
Series
MNPV Series
Approvals
UL1741
