Catalog #

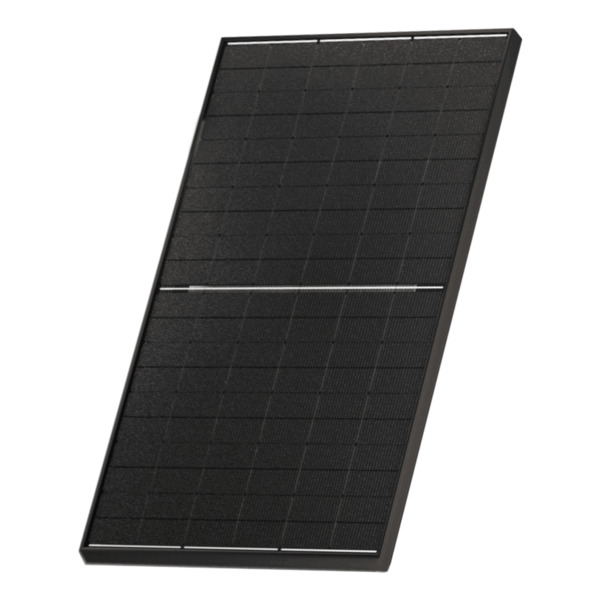

MB-TG120BYB-385
Mfr. Part #
MB-TG120BYB-385
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
292
Watts STC
385 W
Cells
120
Technology
HJT
Open Circuit Voltage (Voc)
44.8
Short Circuit Current (Isc)
12.9
Max Power Voltage (Vmpp)
38.7
Max Power Current (Impp)
10
Max Current
25 A
Efficiency
21.5
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
Solar Glass
Connector
1: n.a. ; 2: MC4-Evo2; 3: UKT Energy PV-CO02; 4: TE Connectivity PV4-S1
Output Cables
PV cable 4 mm2 / 12 AWG, 1.2 m / 47.2 in
Temp Coefficient (Pmpp)
-0.259
Temp Coefficient (Voc)
-0.234
Fire Classification (Type)
Type 29
General Information
Dimensions
1722 L x 1041 W x 35 H mm
Weight
53.8 Lbs.
Series
Meyer Burger Glass
Approvals
IEC 61215:2016
IEC 61730:2016
UL 61730-1
UL 61730-2
PID (IEC 62804)
Salt Mist (IEC 61701)
