Catalog #

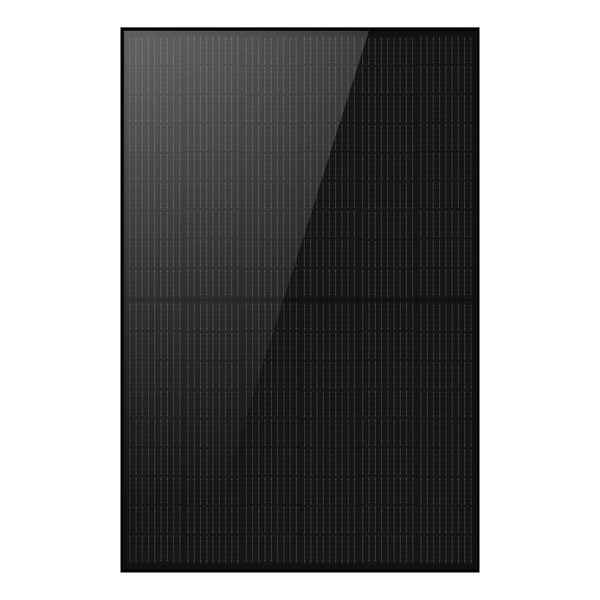

LR5-54HABB-405M
Mfr. Part #
LR5-54HABB-405M
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
460
Watts STC
405 W
Cells
108
Technology
M10 Gallium-doped Wafer
Open Circuit Voltage (Voc)
37.15
Short Circuit Current (Isc)
15.78
Max Power Voltage (Vmpp)
31.04
Max Power Current (Impp)
14.87
Max Current
30 A
Efficiency
20.7
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Black
Backsheet Material
2.0+1.6mm Heat Strengthened Glass
Output Cables
4mm2, +-1200mm
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.265
Fire Classification (Type)
Type 38
General Information
Dimensions
1722 L x 1134 W x 30 H mm
Weight
49.61 Lbs.
Series
Hi-MO 5
Approvals
IEC 61215
IEC 61730
UL 61730
ISO 9001: 2015
ISO 14001: 2015
ISO 45001: 2018
IEC 62941
