Catalog #

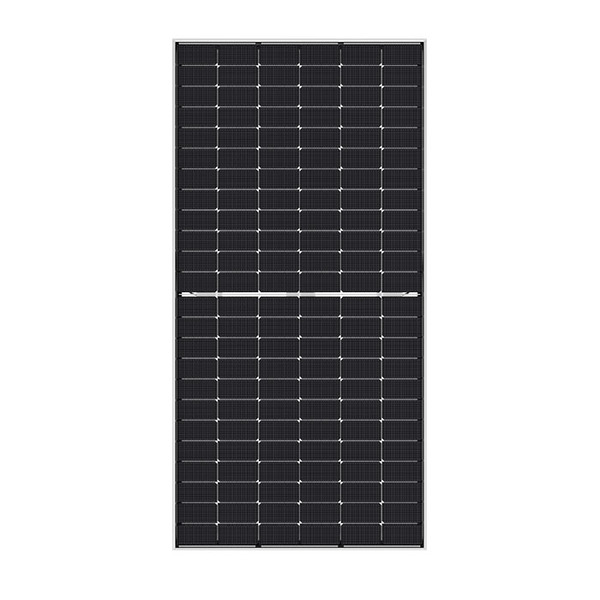

JKM580N-72HL4-BDV.30MC
Mfr. Part #
JKM580N-72HL4-BDV.30MC
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
437
Watts STC
580 W
Cells
144
Technology
N-type TOPCon
Open Circuit Voltage (Voc)
52.5
Short Circuit Current (Isc)
13.95
Max Power Voltage (Vmpp)
43.88
Max Power Current (Impp)
13.22
Max Current
30 A
Efficiency
22.45
Max System Voltage
1500 V
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
30
Frame Color
Silver
Backsheet Material
2.0mm, Heat Strengthened Glass
Connector
MC4
Output Cables
12 AWG, 1400mm (55.12in)
Series Fuse Rating (Amps)
30
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.25
Fire Classification (Type)
Type 29

General Information

Dimensions
2278 L x 1134 W x 30 H mm
Weight
68.34 Lbs.
Series
Eagle 72 G6B
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001: 2018 Occupational Health & Safety Standards
UL61730 certified products
