Catalog #

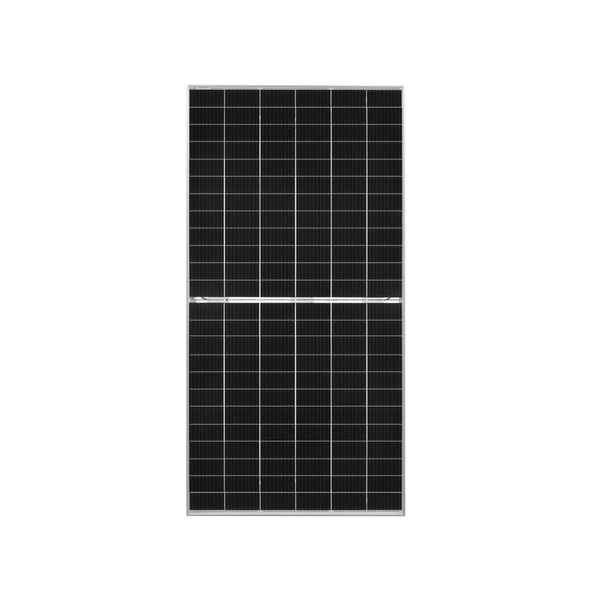

JKM540M-72HL4TV
Mfr. Part #
JKM540M-72HL4TV
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
506.1
Watts STC
540 W
Cells
144
Technology
Monocrystalline
Open Circuit Voltage (Voc)
49.49
Short Circuit Current (Isc)
13.87
Max Power Voltage (Vmpp)
40.91
Max Power Current (Impp)
13.2
Max Current
30 A
Efficiency
20.94
Max System Voltage
1500 V
Frame Material
Anodized Alluminum Alloy
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
DuPont Tedlar
Connector
JK03M
Output Cables
12 AWG, 1400mm
Series Fuse Rating (Amps)
30
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1

General Information

Dimensions
2278 L x 1134 W x 35 H mm
Weight
64.82 Lbs.
Series
Eagle 72 G5b
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001:2018 Occupational Health & Safety Standards
UL61730 certified products
