Catalog #

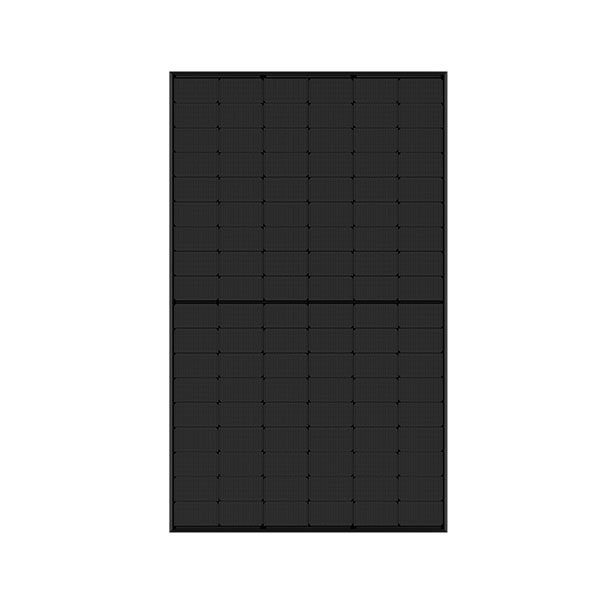

JKM425N-54HL4-B
Mfr. Part #
JKM425N-54HL4-B
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
320
Watts STC
425 W
Cells
108
Technology
N-Type TOPCon
Open Circuit Voltage (Voc)
38.95
Short Circuit Current (Isc)
13.58
Max Power Voltage (Vmpp)
32.37
Max Power Current (Impp)
13.13
Max Current
25 A
Efficiency
21.76
Max System Voltage
1000 V
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
DuPont Tedlar
Connector
Staubli MC4
Output Cables
12 AWG, 1400mm
Series Fuse Rating (Amps)
25
Temp Coefficient (Pmpp)
-0.29
Temp Coefficient (Voc)
-0.25
Fire Classification (Type)
Type 1

General Information

Dimensions
1722 L x 1134 W x 35 H mm
Weight
48.5 Lbs.
Series
Eagle 54HM G6
Approvals
ISO9001:2015 Quality Standards
ISO14001:2015 Environmental Standards
IEC61215
IEC61730 certified products
ISO45001: 2018 Occupational Health & Safety Standards
UL61730 certified products
