Catalog #

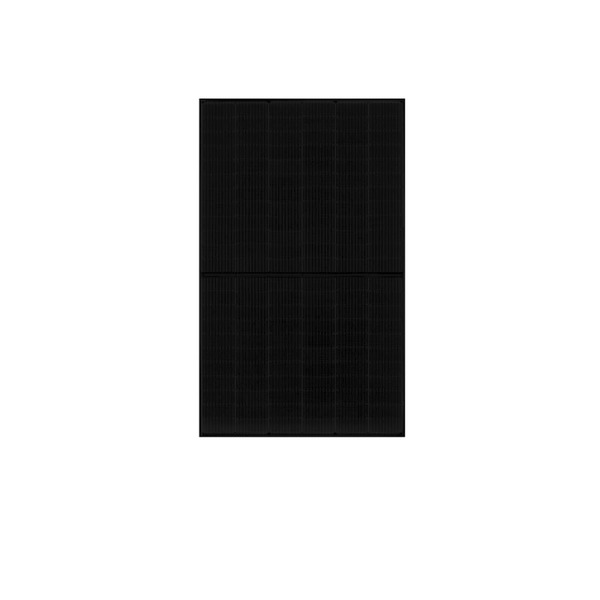

JKM385M-6RL3-B
Mfr. Part #
JKM385M-6RL3-B
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts PTC
355.1
Watts STC
385 W
Cells
132
Technology
Monocrystalline
Open Circuit Voltage (Voc)
44.34
Short Circuit Current (Isc)
11.22
Max Power Voltage (Vmpp)
37.02
Max Power Current (Impp)
10.4
Max Current
20 A
Efficiency
20.17
Max System Voltage
1000 V
Frame Material
Anodized Alluminum Alloy
Frame Thickness (mm)
35
Frame Color
Black
Backsheet Material
DuPont Tedlar
Connector
MC4
Output Cables
12 AWG, 2053mm
Series Fuse Rating (Amps)
20
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1

General Information

Dimensions
1855 L x 1029 W x 35 H mm
Weight
47.4 Lbs.
Series
Eagle 66TR G4
Approvals
ISO9001:2008 Quality Standards
ISO14001:2004 Environmental Standards
IEC61215
IEC61730 certified products
OHSAS18001 Occupational Health & Safety Standards
UL1703/61730 certified product
