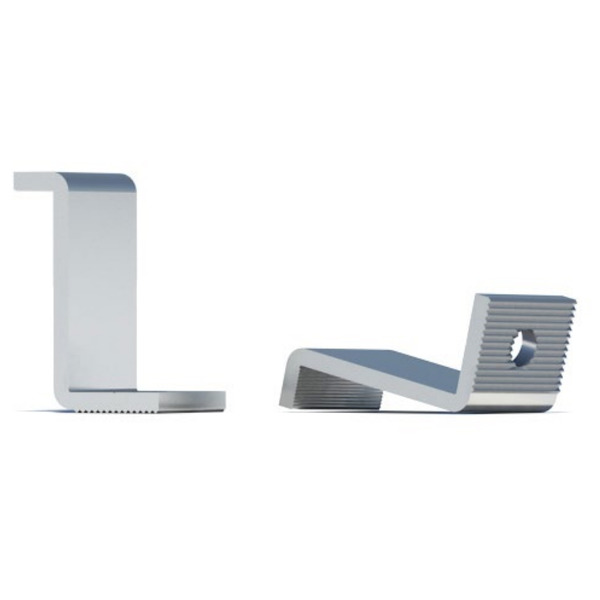

IronRidge BX System 40mm Top Clamp Mill, BX-TCL-40MM-M1

IronRidge BX System Top Clamp, 40MM, Mill, BX-TCL-40MM-M1, Qty 1The IronRidge BX System Top Clamps are module frame height specific and accommodate most common module sizes: 30 mm, 32 mm, 35 mm, 38 mm, 40 mm, 46 mm. When securing modules, place all Bottom Clamps on the Chassis followed by the PV panels. Place a matching number of Top Clamps aligned above the Bottom Clamps and make sure that all Clamps are fully engaged and square to the module and torqued appropriately.

Features:

BX has an 8-10% increase in power density when compared with leading competitor systems

Provides an anchoring method with a variety of roofing membranes, making it possible to eliminate ballast weight, meet seismic requirements, or build hybrid systems

designed to offer protection for PV conductors and leads running row-to-row in the N-S direction

Fewer than 10 parts per project, with no wind deflectors required

Free online Design Assistant provides a bill of materials, ballast map, PE dry stamp, and more

One-tool attachment

Mill aluminum 6000 series
