IronRidge BX 5 Degree Chassis Black, BX-5D-P1

IronRidge BX System Chassis, 5°, BX-5D-P1, Qty 1

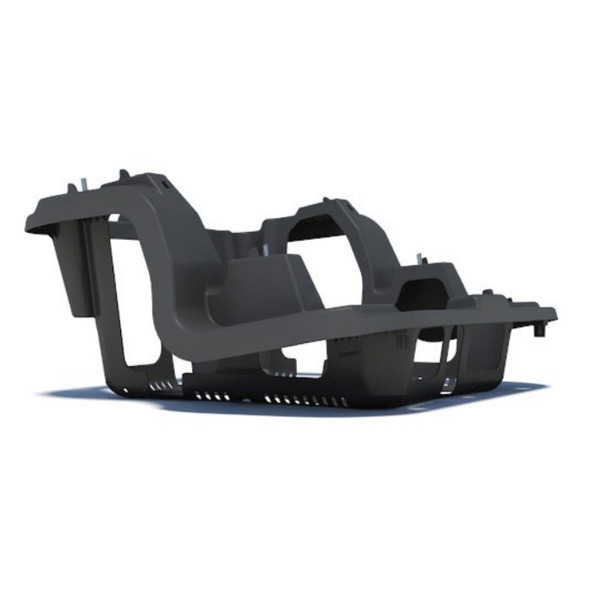

BX Chassis is designed to clamp PV modules and secure them in place. Reference tabs are integrated to aid with aligning modules according to system layout. The Chassis is available in two SKUs: 5° and 10° tilt configurations. The Chassis is designed to accommodate 4 full sizes (16 In. x 8 In. x 4 In.) or 8 half-size concrete ballast blocks (16 In. x 8 In. x 2 In.) nominal dimensions.
Concrete ballast block requirements:

• Manufactured per ASTM C 1491 (Standard specification for concrete pavers)
• Manufactured to resist freeze-thaw as required per local conditions
• Weight: 17 lbs ±2 lbs for half-size and 34 lbs ±2 lbs for full size

Features:

• BX has an 8-10% increase in power density when compared with leading competitor systems
• Provides an anchoring method with a variety of roofing membranes, making it possible to eliminate ballast weight, meet seismic requirements, or build hybrid systems
• designed to offer protection for PV conductors and leads running row-to-row in the N-S direction
• Fewer than 10 parts per project, with no wind deflectors required
• Free online Design Assistant provides a bill of materials, ballast map, PE dry stamp, and more
• Stackable Chassis and conveniently packaged hardware and accessories
