Catalog #
JKM375M-6RL3-B
Mfr. Part #
JKM375M-6RL3-B
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Description

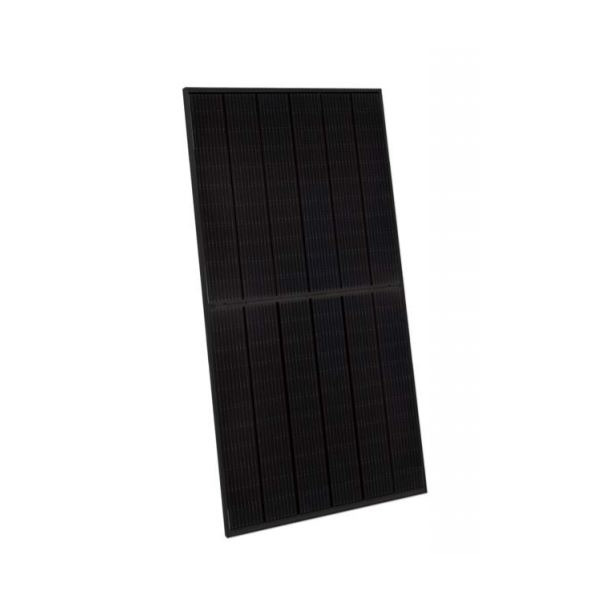

Eagle 66TR G4 | 375W 66 Half-Cell Mono BLK/BLK 1000V Solar Panel, JKM375M-6RL3-BThe Eagle G4 modules utilize high efficiency cells and our new TR technology. By minimizing white space between cells, Jinko enables the maximum module power.
Technical Specifications
Watts STC
375 W
Cells
66
Technology
Mono
Open Circuit Voltage (Voc)
44.12
Short Circuit Current (Isc)
11.01
Max Power Voltage (Vmpp)
36.8
Max Power Current (Impp)
10.19
Max Current
20 A
Efficiency
19.65%
Frame Material
Anodized Aluminum
Frame Thickness (mm)
35
Backsheet Material
Black
Connector
MC4
Output Cables
12 AWG. 2053mm
Temp Coefficient (Pmpp)
-0.35
Temp Coefficient (Voc)
-0.28
Fire Classification (Type)
Type 1
General Information
Dimensions
73.03 L x 40.51 Wx1.37 H In.
Weight
47.4 lbs.
Approvals
UL
IEC
