Catalog #

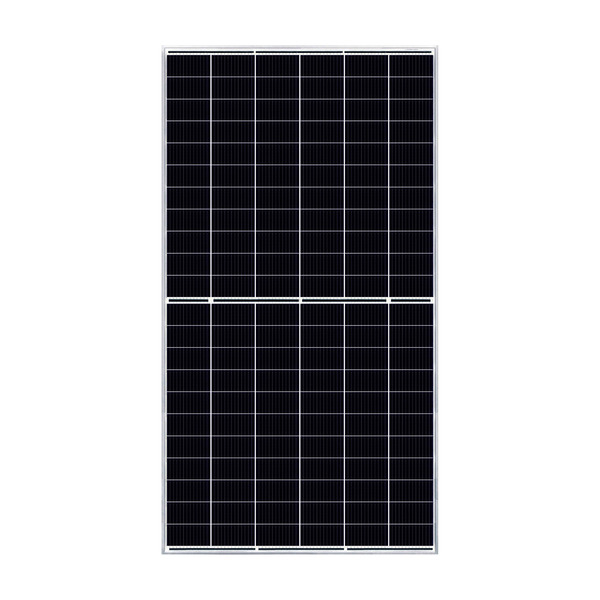

CS7N-650MB-AG
Mfr. Part #
CS7N-650MB-AG
Manufacturer
Category
Technical Specifications
Watts PTC
780
Watts STC
650 W
Cells
132
Technology
Monocrystalline
Open Circuit Voltage (Voc)
45
Short Circuit Current (Isc)
22.07
Max Power Voltage (Vmpp)
37.9
Max Power Current (Impp)
20.59
Max Current
35 A
Efficiency
20.9
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
2 mm Heat Strengthened Glass
Connector
MC4 or EVO2
Output Cables
4 mm2 (IEC), 10 AWG (UL)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 29
General Information
Dimensions
2384 L x 1303 W x 35 H mm
Weight
83.6 Lbs.
Series
BiHiKu7
Approvals
IEC 61215 / IEC 61730 / INMETRO / UKCA / UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68
