Catalog #

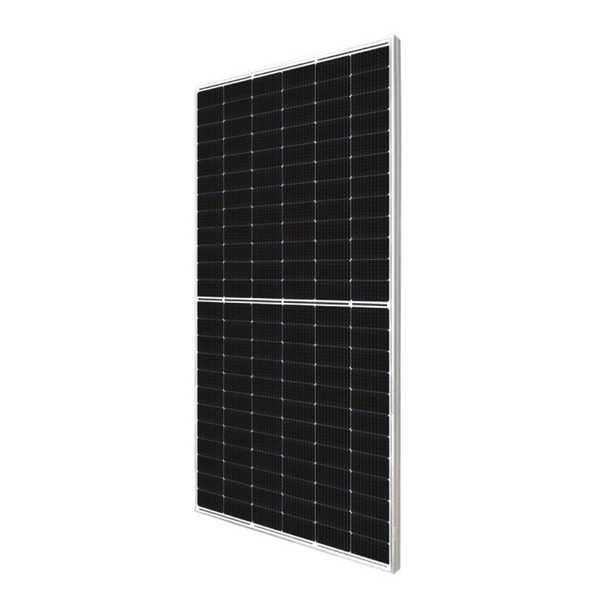

CS6W-540MB-AG
Mfr. Part #
CS6W-540MB-AG
Manufacturer
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:
Technical Specifications
Watts PTC
648
Watts STC
540 W
Cells
144
Technology
Monocrystalline
Open Circuit Voltage (Voc)
49.2
Short Circuit Current (Isc)
16.68
Max Power Voltage (Vmpp)
41.3
Max Power Current (Impp)
15.7
Max Current
30 A
Efficiency
25.2
Frame Material
Anodized Aluminum Alloy
Frame Thickness (mm)
35
Frame Color
Silver
Backsheet Material
2 mm Heat Strengthened Glass
Connector
PV-KST4/xy-UR, PV-KBT4/xy-UR or T4 or T6 or PV-KST4-EVO2/XY, PV-KBT4-EVO2/XY
Output Cables
4 mm2 (IEC), 12 AWG (UL)
Temp Coefficient (Pmpp)
-0.34
Temp Coefficient (Voc)
-0.26
Fire Classification (Type)
Type 29
General Information
Dimensions
2266 L x 1134 W x 35 H mm
Weight
71 Lbs.
Series
BiHiKu6
Approvals
IEC 61215 / IEC 61730 / CE / INMETRO / MCS / UKCA / CEC listed (US California) / UL 61730 / IEC 61701 / IEC 62716 / IEC 60068-2-68
