Catalog #

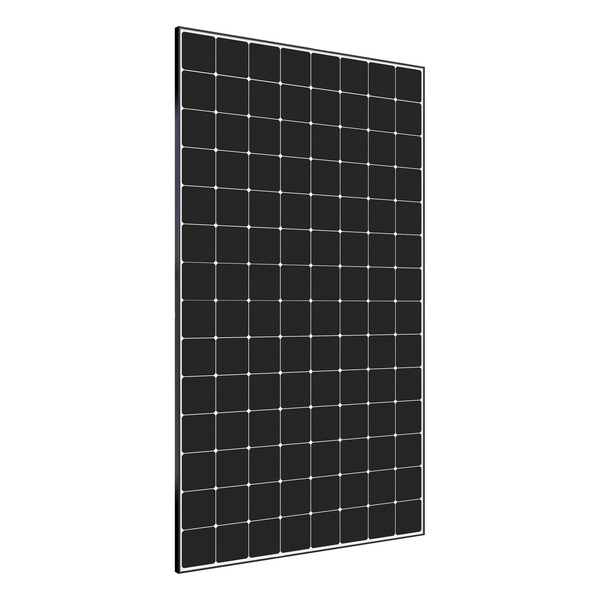

SPR-MAX3-415-R
Mfr. Part #
SPR-MAX3-415-R
Category
Unit Price
For wholesale pricing and availability contact your local Greentech Renewables or:

Technical Specifications

Watts STC
415 W
Cells
112
Technology
Monocrystalline
Open Circuit Voltage (Voc)
40.6
Short Circuit Current (Isc)
13.10
Max Power Voltage (Vmpp)
34.5
Max Power Current (Impp)
12.03
Max Current
25 A
Efficiency
21.9
Max System Voltage
1000 V
Frame Material
Anodized Aluminum
Frame Thickness (mm)
40
Frame Color
Black
Connector
Staubli (MC4)
Output Cables
48.2 in +/-0.4 in
Series Fuse Rating (Amps)
25
Temp Coefficient (Pmpp)
-0.27
Temp Coefficient (Voc)
-0.236
Fire Classification (Type)
2

General Information

Dimensions
1812 L x 1046 W x 40 H mm
Weight
46.7 Lbs.
Series
Maxeon 3
Approvals
UL 61730
IEC 61215
IEC 61730
ISO 9001:2015
ISO 14001:2015
IEC 62716
IEC 60068-2-68
MIL-STD-810G
IEC 61701
